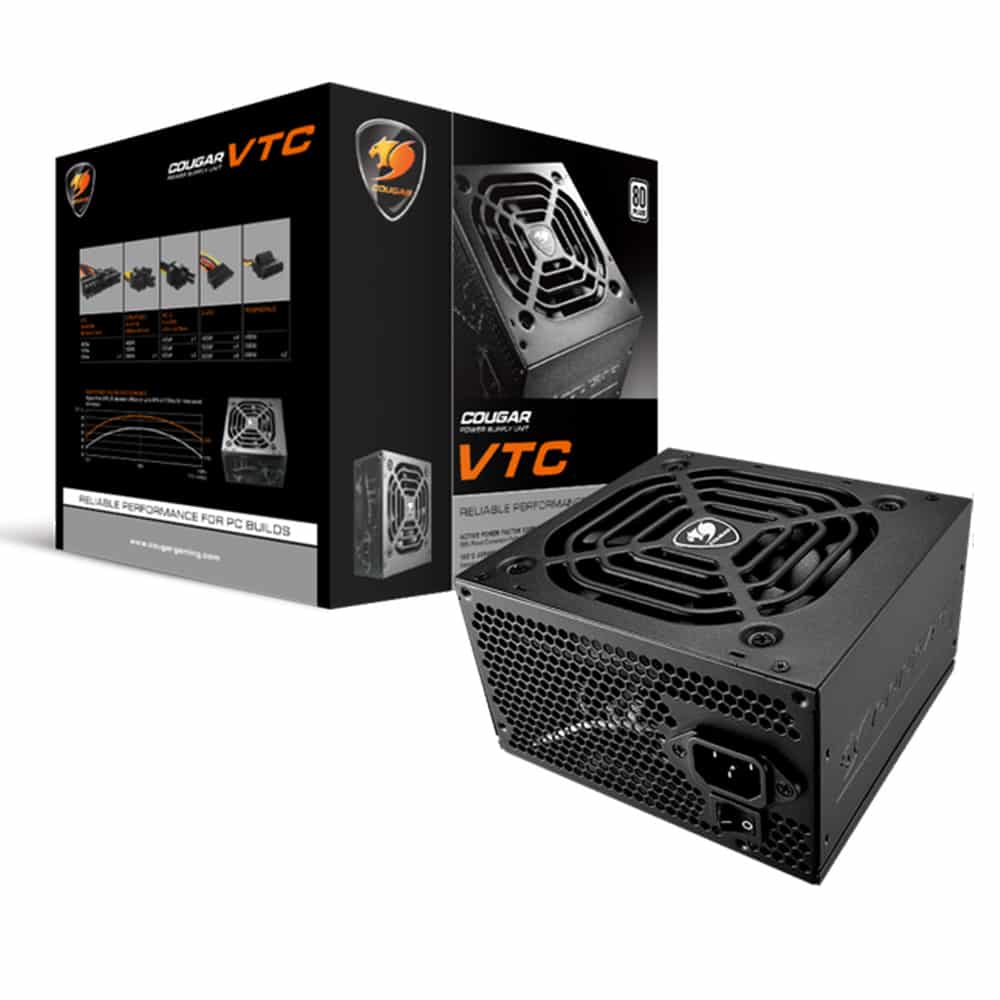

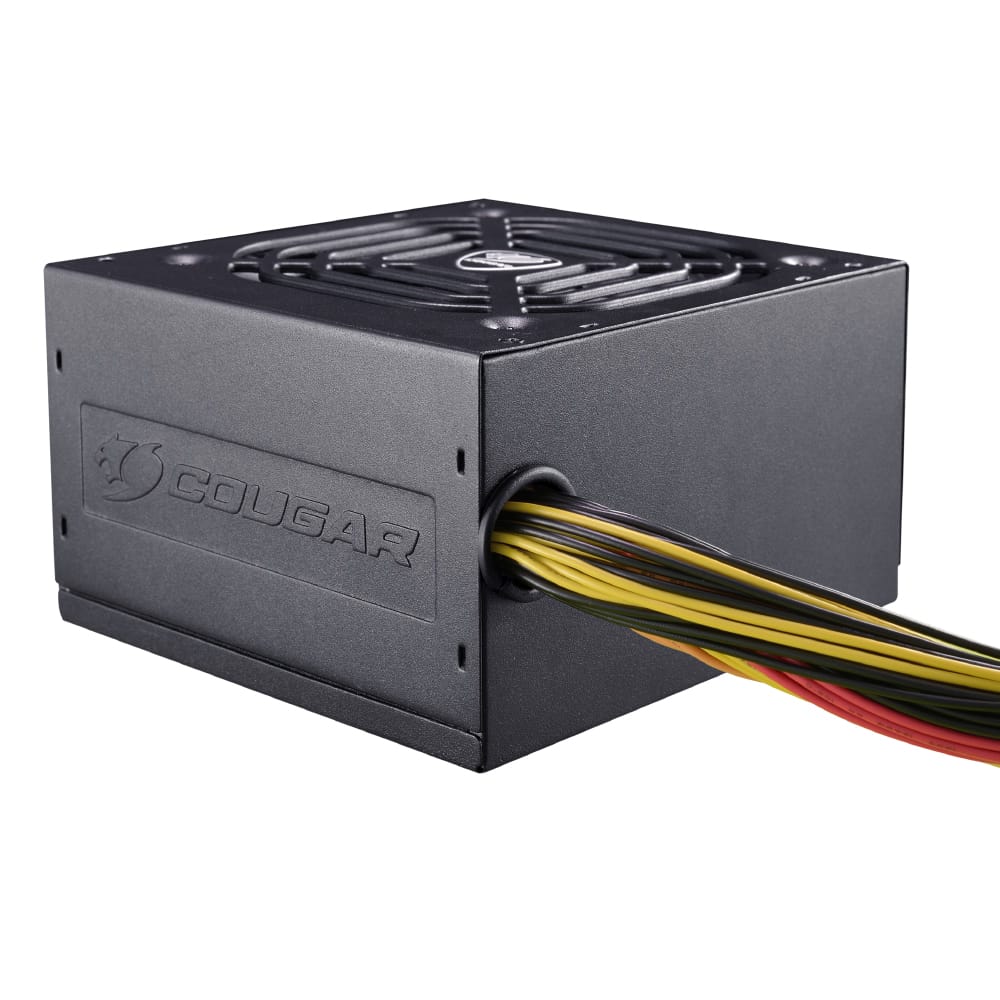

FUENTE DE PODER COUGAR 400 WATTS VTC 400

80-PLUS®Standard Certified VTC’s performance surpasses the requirements of 80 PLUS standard, achieving up to 84% efficiency at 115Vac Corrección Activa del Factor de Potencia High power conversion efficiency
- PF value up to 99%, provides clean and reliable power
- 105℃ Japanese Standby Capacitor Highly durable and solidly reliable 105℃ Japanese Standby Capacitors 120mm Extreme Temperature Control Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads, helping you enjoy a quieter gaming experience
- Massive Single 12V DC Output Ready for 4K gaming! Solid performance for high-end graphics Systems capable of delivering 4K graphics for your games! Comparison based on VTC600’s performance data
- Características High Efficiency That Surpasses The 80 PLUS Standard’s Requirements Up to 84% efficiency: keep your electricity bill under control
- Ultra-Stable Voltage Output Enhanced layout design for solid performance during gaming sessions
- 105°C Japanese Standby Capacitors Reliable and durable components that extend the PSU’s useful life
- Compatible With The Latest PC Technology Supports the ATX12V standard’s requirements and allows you to use the newest multi-core CPUs

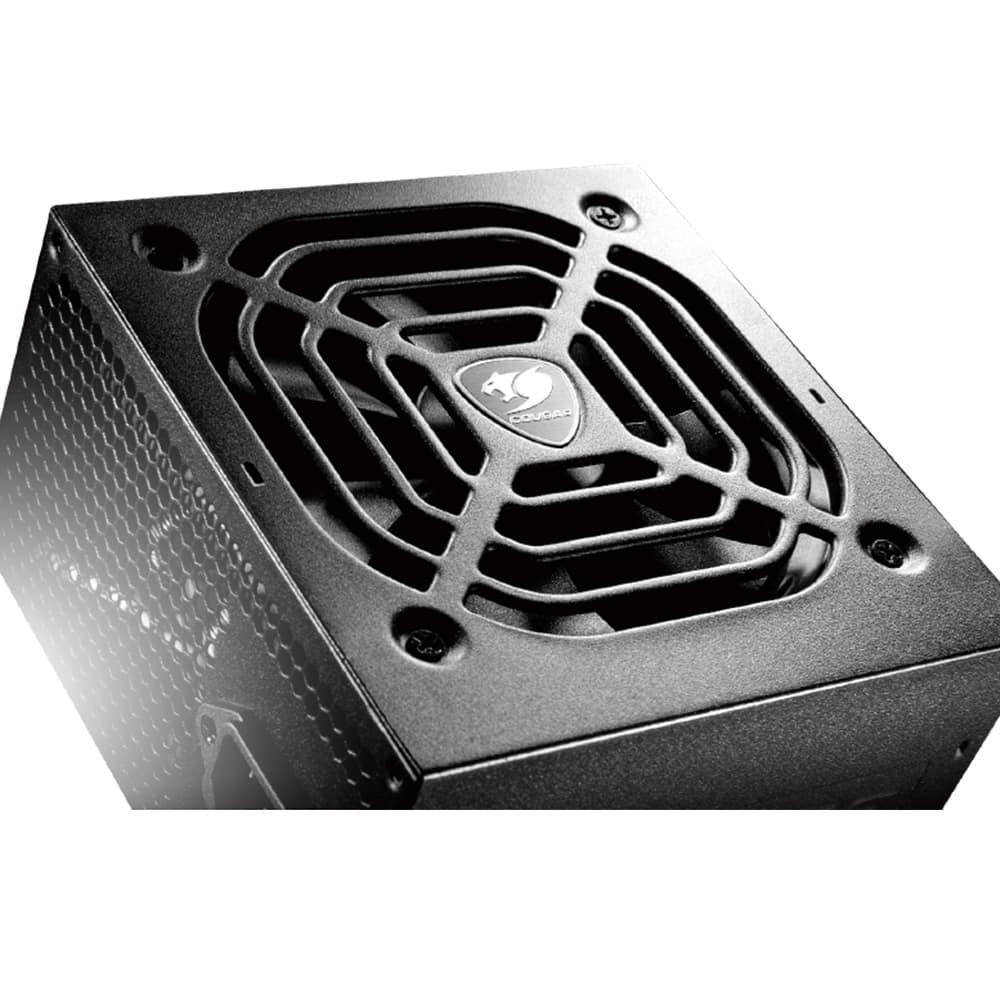

- Super-silent 120mm fan with Automatic Thermal Control Minimal noise, maximum safety! Integrated Air Inlet Design A highly aerodynamical design created to further reduce noise
- Massive Single 12V DC Output: 4K Compatible Extreme stability for the most powerful graphics cards
- Supports Multi-GPU Technology: PCI Express 3
-0 Supports PCI Express 3
-0 next-generation graphic card with 8(6+2)pin PCI-E connector Active Power Factor Correction (Active PFC) A PF value up to 99% provides a clean and reliable power output
- Full Protections with OCP, SCP, OVP, UVP and OPP Especificaciones Nombre del modelo Entrada AC Salida DC +3
-3V +5V +12V -12V +5Vsb Total VTC400 100-240V~ 50-60Hz 6/A 16A 16A 30A 0
-3A 3A 400W 120W 360W VTC500 100-240V~ 50-60Hz 8/4A 16A 17A 40A 0
-3A 3A 500W 120W 480W VTC600 100-240V~ 50-60Hz 10/5A 18A 18A 48A 0
-3A 3A 600W 120W 576W Connector Principal CPU Periféricos S-ATA PCI-E Pin 24(20+4) Pins 8(4+4) Pins 8 Pins 4 Pins 5 Pins 8(6+2) Pins VTC400 1 1 2 4 1 VTC500 1 1 2 5 2 VTC600 1 1 2 6 2 Protección OCP (Overcurrent Protection) Si la corriente en una línea es más alta de lo establecido, la fuente se apagará automáticamente
- UVP (Under Voltage Protection) Si el voltaje baja por debajo del valor tolerado en una línea, la fuente se apagará automáticamente
- OVP (Over Voltage Protection) Si los voltajes suben por encima de los valores tolerados en una línea, la PSU se apagará automáticamente
- SCP (Short-Circuit Protection) En caso de cortocircuito, esta característica evita daños a los componentes principales de la fuente de alimentación y de tu sistema
- OPP (Over Power Protection) Si el sistema está sobredimensionado y requiere de la fuente más energía de la que ésta puede proporcionar, esta protección será activada
-
